A Brief Introduction to MC4 Connectors

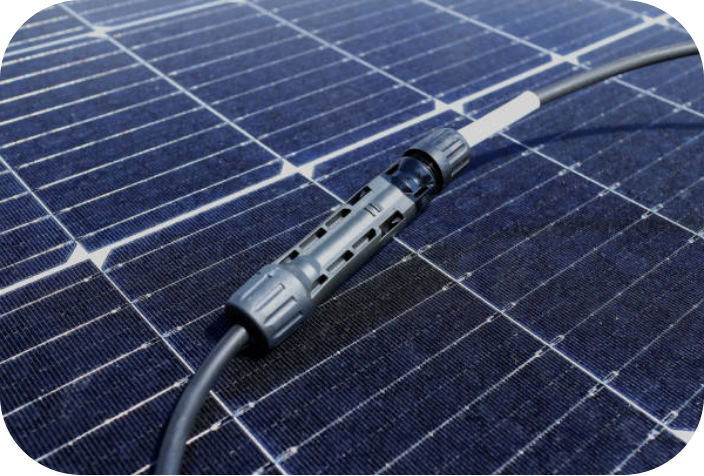

MC4 connectors, short for “Multi-Contact 4mm,” are the industry standard for connecting solar panels in photovoltaic (PV) systems. The “MC” comes from the Swiss company Multi-Contact, which first developed the connector in the mid-1990s. The “4” refers to the 4 mm diameter of the contact pins.

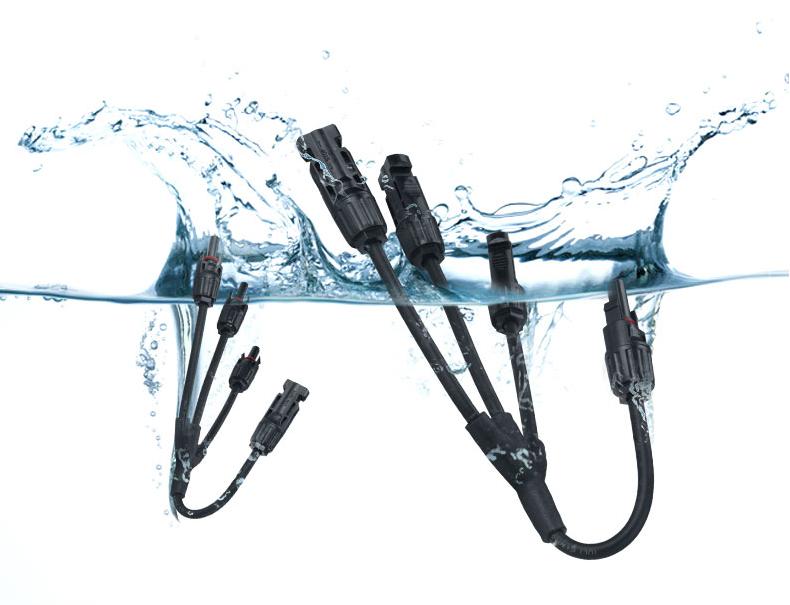

Designed for outdoor use, MC4 connectors usually feature an IP67 protection rating. This rating provides strong dust resistance and allows immersion in one meter of water for up to 30 minutes. This protection allows them to endure harsh outdoor weather conditions like rain, snow, extreme heat, and cold. With an operating temperature range of -40°C to 85°C, they function reliably across diverse global climates.
Design and Construction
Two Pieces Snap Together Design

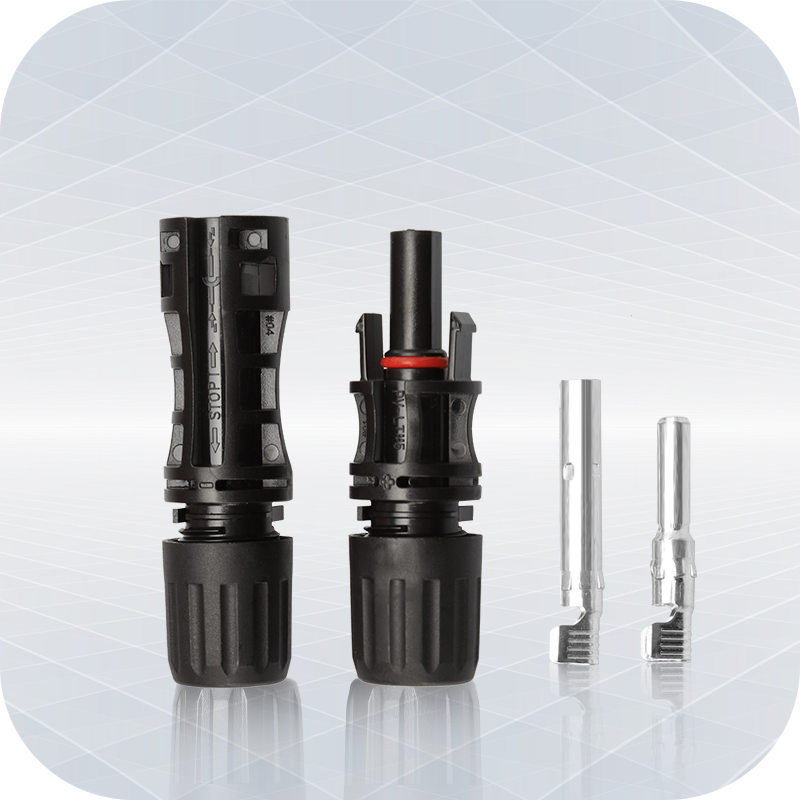

MC4 connectors feature a two piece design, consisting of male and female connectors. The male connector has a single exposed contact point in the middle, surrounded by an insulating plastic frame. The female connector features a receptacle that precisely accepts the male contact point. This design ensures proper alignment during connection.
This snap together mechanism is not only easy to use but also provides a secure connection. Once connected, the two parts form a tight seal. A positive locking mechanism prevents accidental disconnection. Disconnecting MC4 connectors requires a special tool. This design helps prevent accidental disconnection. It is especially important in harsh outdoor environments with vibration or physical stress.
Durable Materials
The construction materials of MC4 connectors contribute significantly to their durability. Manufacturers build the housing from a sturdy, UV-resistant plastic. This is essential because solar panels remain constantly exposed to sunlight. Over time, UV radiation can degrade material integrity. UV-resistant plastic helps the connectors maintain structural integrity and electrical performance. This protection remains effective even after years of sun exposure.
Inside the connectors, manufacturers use stainless steel contact pins. Stainless steel offers excellent electrical conductivity while also being highly resistant to corrosion. This is crucial because solar installations often expose the connectors to moisture as well as sunlight. Stainless steel pins and a well-sealed housing help prevent rust and corrosion. This protection preserves stable electrical connections and system efficiency.
Applications in Solar Power Systems
Connecting Solar Panels

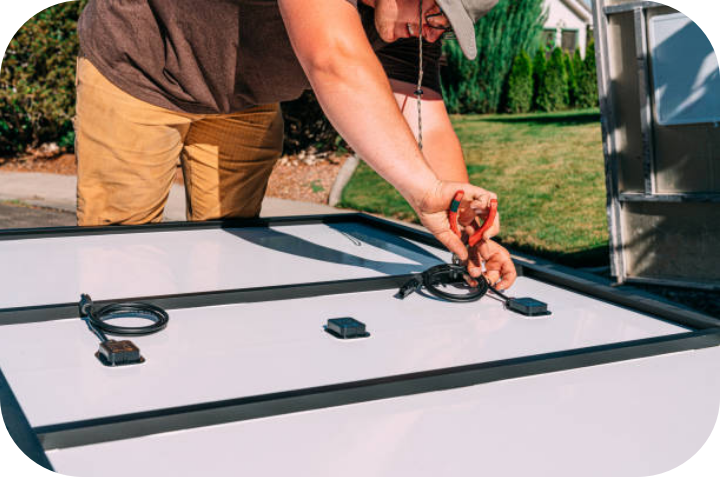

Installers commonly use MC4 connectors to connect individual solar panels. In solar arrays, panels often connect in series. This applies to residential systems, industrial rooftops, and large-scale solar farms. The MC4 connectors could simplify this process. Solar panels usually have also MC4 connectors preinstalled on output wires. For series connection, the installer can just snap one panel’s male connector into the next panel’s female connector to link the two panels into the system. In a series connection, the system voltage increases. The total voltage equals the sum of the individual panel voltages.
In parallel connections, the system current increases while the voltage remains the same.

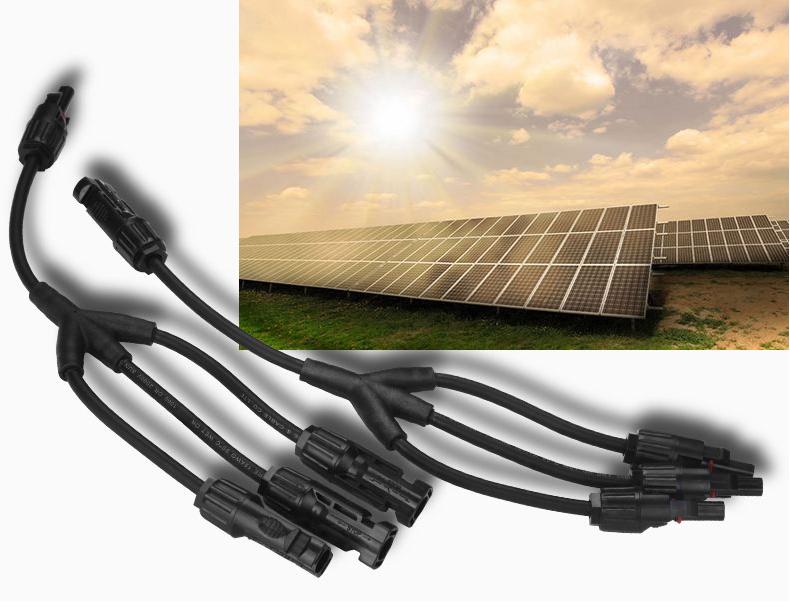

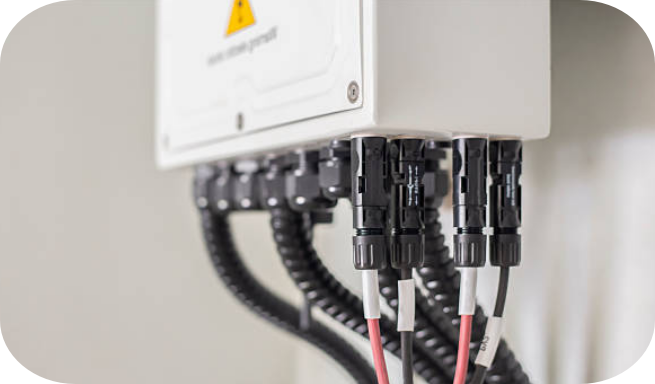

Installers typically use MC4 multi-branch connectors or a PV combiner box.
This setup simplifies the connection to the inverter. In parallel, In parallel systems, installers must connect the positive leads together and the negative leads together. MC4 connectors make these connections easy, maximizing the security and also the overall sustainability, which are essential for the solar array’s long-term performance and reliability.
Linking Solar Panels to Inverters
MC4 connectors serve as essential components that connect solar panels to the inverter system. The inverter converts the direct current (DC) generated by the solar panels into alternating current (AC), which powers household appliances or feeds electricity back into the grid when a grid-connected setup is present.
The MC4 connectors provide a secure connection between the various sections in the whole system. This connection is crucial as it needs to support a consistent electrical current flowing from the panels efficiently and safely. Any loose or faulty connection could result in extra maintenance & reparation cost, power losses, overheating, or even damage to the inverter or back to the solar panels themselves.
Other DC Applications
Beyond solar panel specific applications, MC4 connectors find use in automotive, marine, and industrial settings as well. In the automotive industry, In the automotive industry, installers use them in electric vehicle (EV) charging stations. Their ability to handle high current level ratings, combined with their IP67 waterproof feature and vibration resistance, makes them suitable for this application. In marine environments, MC4 connectors power boats and recreational vehicles in marine environments.
Boats are constantly exposed to water, humidity, and vibrations, and MC4 connectors feature a plug-and-play design that significantly simplifies installation, with no special tools or soldering required. In industrial settings, especially in off-grid industrial solar system setting, MC4 connectors ensure a stable power supply in challenging environments.
Advantages of MC4 Connectors
Reliable and Secure Connection
The locking mechanism of MC4 connectors is a key advantage. Once mated, these connectors are extremely difficult to separate without using the appropriate tool. This ensures that the electrical connection remains solid over time, which means less maintenance, even in the face of external forces such as wind, vibrations, or accidental tugging on the cables.
By preventing accidental disconnection, MC4 connectors reduce the risk of electrical arcing, which can be a safety hazard, leading to potential damages to the connected components in the solar system. This reliability is crucial for the long-term performance and safety of the systems.
Easy Installation
MC4 connectors are designed for plug-and-play installation, which significantly simplifies the installation process, with no special tools or soldering required. Manufacturers often color-code the connectors, making it easy for installers to match positive and negative contacts.
This ease of installation not only saves time during the initial setup of a solar system but also makes maintenance and repair procedure more straightforward. For example, if a solar panel or a cable needs to be replaced, Installers can quickly disconnect MC4 connectors with a tool and reconnect them afterward without complex electrical work.
Durability and Weatherproof Features
With their IP67 rating, MC4 connectors are highly durable and weatherproof. They can withstand extreme temperatures, dust or water. The UV-resistant layer protects against the harmful effects of sunlight, preventing the plastic from cracking or degrading over time.
This strong durability This strong durability enables MC4 connectors to operate reliably in a wide range of outdoor environments, from sunny deserts to rainy coastal regions. Their ability to maintain a reliable electrical connection in harsh conditions contributes well to the overall reliability and longevity of solar power systems.
Conclusion
MC4 connector, although small in size, features a good functionality, reliability, and ease in installation for the solar power systems. It’s wide applications within the solar industry and beyond is also a good testament for their effectiveness and versatility. As the solar energy market continues to grow and evolve, MC4 connectors will undoubtedly remain an important role in the new energy field！
