Air Circuit Breakers (ACB) for Industrial Power Systems
Air Circuit Breakers (ACB) are essential components in low-voltage power distribution systems, designed to protect electrical circuits from overload, short circuit, and fault conditions.
Certified By

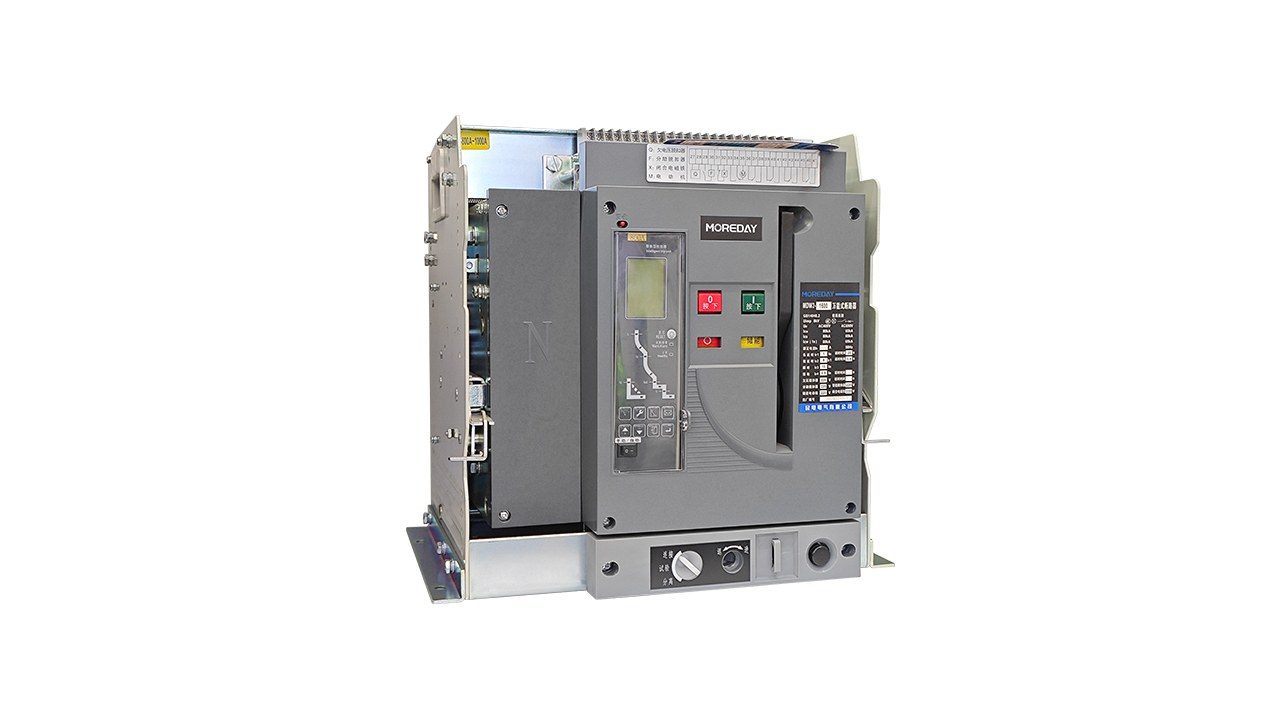

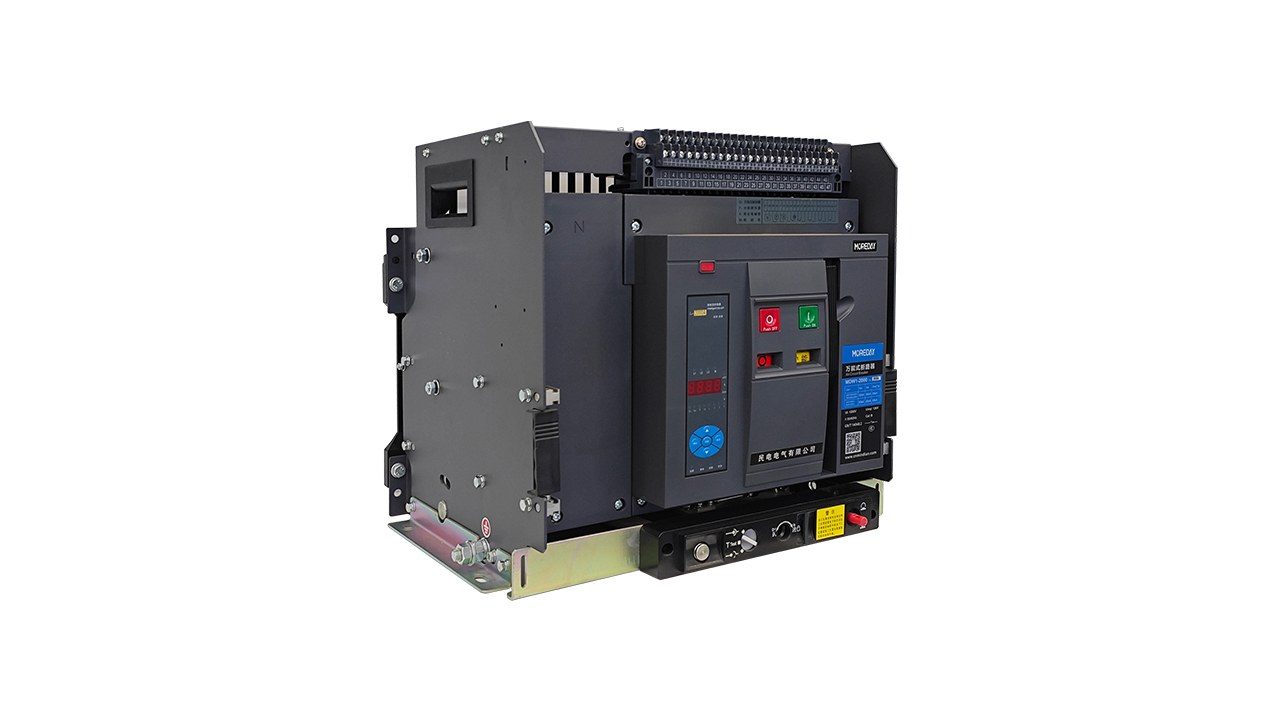

MOREDAY ACB Product Lineup - Complete Technical Specifications
Why Choose MOREDAY?
MOREDAY is a professional manufacturer with over 17 years of experience in designing, producing, and exporting miniature circuit breakers. Located in Yueqing – China’s “Electric Device Metropolis” – we serve distributors, contractors, and electrical engineers across 30+ countries with high-quality, IEC/CE/RoHS certified circuit protection solutions.
- From DC components to energy storage solutions, MOREDAY provides a complete portfolio to support solar, EV charging, and low-voltage electrical applications.
- Equipped with advanced production lines and strict QC processes, we ensure consistent product performance and long-term reliability.
- All products comply with international standards such as IEC, CE, and RoHS, making them suitable for projects across Europe, Asia, and beyond.
- Flexible customization options including branding, specifications, and packaging help you adapt to different market demands and grow your business.
- With rich export experience, MOREDAY offers fast response, stable delivery, and technical support to ensure smooth cooperation and long-term partnership.
This is the heading
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
This is the heading
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
This is the heading
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
This is the heading
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
More Than Just a MCB Manufacturer
At MOREDAY, we go beyond manufacturing MCBby offering a suite of value-added services tailored to meet your project needs. Our commitment to excellence ensures that every customer receives personalized attention, expert guidance, and seamless support throughout their journey with us.
Technical Consultation

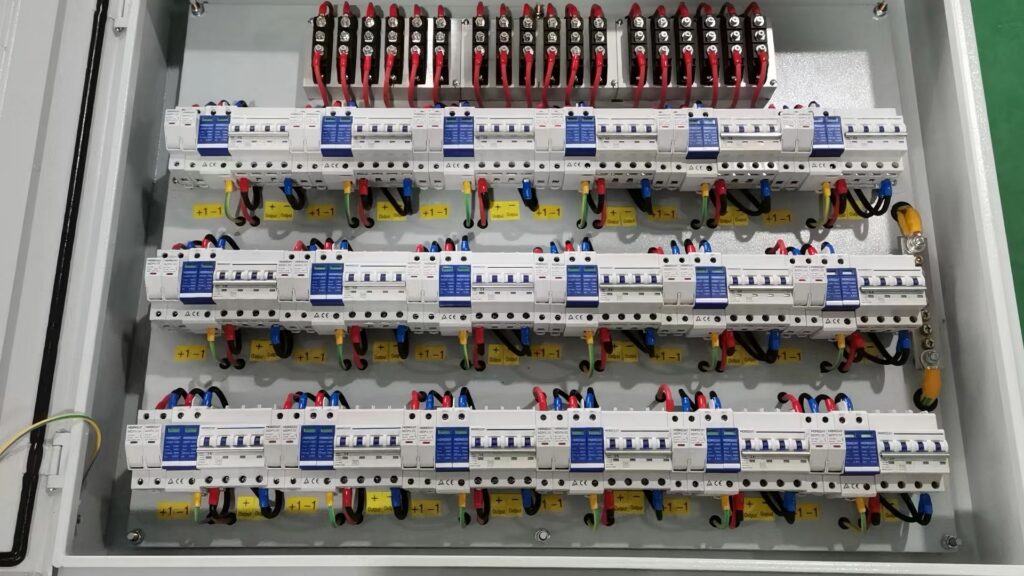

Our engineering team provides professional DC protection design support for solar PV systems. From breaker selection to full combiner box configuration, we help you ensure safety, compliance, and long-term reliability.
OEM & Custom Solutions
We support logo printing, customized voltage ratings, special tripping curves, and private label packaging. MOREDAY helps distributors and project contractors build competitive branded products for local markets.
Certified Quality Assurance
Our products comply with CE, CB, and TÜV standards. Each unit undergoes strict testing for breaking capacity, temperature rise, and durability to meet international project requirements.
Global Project Experience
MOREDAY products are widely used in solar power plants, energy storage systems, EV charging stations, and industrial applications across Europe, Asia, and Africa.
Knowledge About MCB
- What is an MCB?
A miniature circuit breaker (MCB) is an automatically operated electrical switch designed to protect circuits from overcurrent damage caused by overloads or short circuits. Unlike fuses that must be replaced after operating, MCBs can be reset and reused indefinitely. They work through two protection mechanisms: a thermal element (bimetallic strip) that provides time-delayed protection against overloads, and a magnetic element (solenoid) that provides instantaneous protection against short circuits, typically operating in 0.01-0.1 seconds.
- How Does an MCB Work?
Modern MCBs from our manufacturing facility employ two protection mechanisms:
1. Thermal Protection (Overload)
- Bimetallic strip heats and bends under prolonged overcurrent
- Provides time-delayed tripping for overload conditions
- Allows temporary harmless overcurrents (motor starting)
- Typically trips at 1.13-1.45x rated current within 1 hour
2. Magnetic Protection (Short Circuit)
- Electromagnetic solenoid activates under sudden high current
- Provides instantaneous tripping for fault conditions
- Operates in milliseconds (0.01-0.1 seconds)
- Prevents arc flash and equipment damage
- Key Components of an MCB
- Operating Mechanism: The handle and latching mechanism
- Contacts: The conducting parts that connect and disconnect the circuit
- Arc Extinguishing Chamber: Quenches the arc formed during contact separation
- Thermal Element: Bimetallic strip for overload protection
- Magnetic Element: Solenoid for short-circuit protection
- Terminals: Connection points for incoming and outgoing cables
- What is the difference between B, C, and D trip curves?
B-curve MCBs trip at 3-5 times the rated current and are ideal for resistive loads like lighting and heating. C-curve MCBs trip at 5-10 times the rated current, making them suitable for general-purpose applications including slightly inductive loads like small motors—this is the most commonly used curve representing about 90% of installations. D-curve MCBs trip at 10-20 times the rated current and are designed for highly inductive loads with high inrush currents such as large motors, transformers, and welding equipment.
- How do I determine the correct MCB size for my application?
Calculate the maximum current draw of your circuit, then select an MCB with a rating slightly higher than this value. Consider factors like cable size, load type, and potential future expansion. For specific guidance, consult our selection guide or contact our technical team.
Get Your MCB Quote Today
We provide samples for free, you just need to tell us what you need
