How to Design DC Protection for Rooftop PV Systems

Rooftop solar PV systems are widely used in residential, commercial, and industrial buildings. While they offer clean energy and cost savings, they also introduce high-voltage DC circuits on rooftops, which require carefully designed protection systems.

Unlike AC circuits, DC systems behave differently during faults. Improper DC protection design can increase risks such as:

• Persistent DC arcing
• Reverse current faults
• Overvoltage caused by lightning
• Fire hazards in rooftop environments

This guide explains how to properly design DC protection for rooftop PV systems in a practical and structured way.

Understand the Structure of a Rooftop PV DC System

Before designing protection, it’s important to understand the typical DC power path:

1. PV modules generate DC power
2. Modules are connected into strings
3. Strings may connect to a DC combiner box
4. DC power flows to the inverter

Protection can be placed at multiple levels:

• String level
• Array level
• Inverter input level

Each level serves a different purpose.

👉 If you are new to system structure, refer to:
What Is a Solar PV System? (Components & Working Principle)

Step 1 – String-Level Overcurrent Protection

Why It Is Needed

When multiple PV strings are connected in parallel, a fault in one string can cause reverse current from other strings.

This may:

• Overheat cables
• Damage modules
• Increase fire risk

Design Principle

If 3 or more strings are connected in parallel, string-level overcurrent protection is generally required.

Common Solution

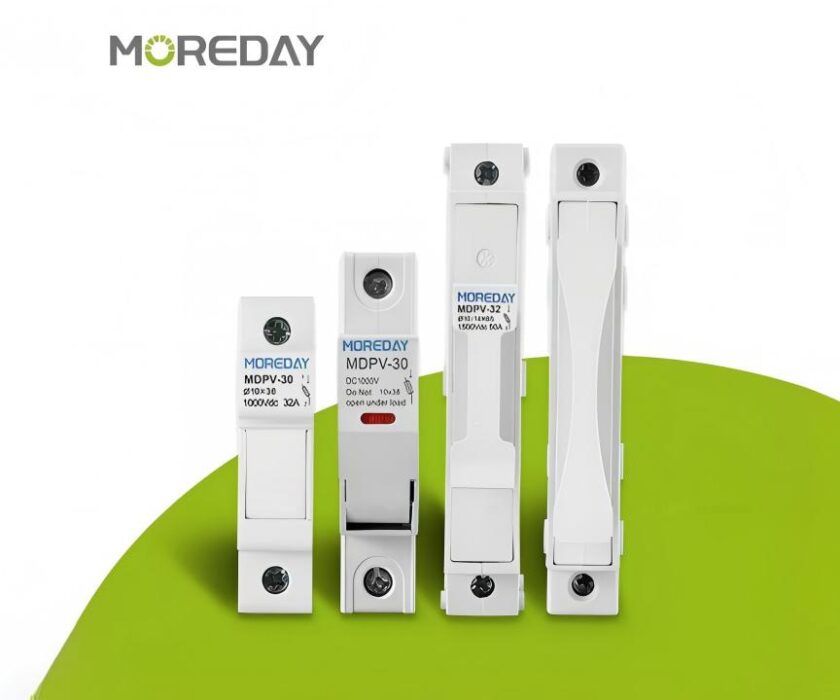

• Install DC fuses for each string
• Fuse rating must match module specifications
• Ensure fuse voltage rating ≥ system maximum DC voltage

For small rooftop systems with only one or two strings, fuses may not always be required depending on system configuration and standards.

Step 2 – DC Isolation for Maintenance and Emergency

Rooftop PV systems must allow safe shutdown for:

• Maintenance work
• Firefighter access
• Emergency disconnection

DC Isolator Placement

Common locations:

• Near the PV array
• Integrated in the DC combiner box
• Near the inverter input

Design Considerations

• Rated for full load DC current
• Rated for system voltage (600V / 1000V / 1500V)
• Designed specifically for DC switching

⚠️ DC switches must be arc-resistant and designed for DC interruption — AC switches are not suitable.

Step 3 – Surge Protection Against Lightning

Rooftop installations are exposed to lightning and transient overvoltage.

Even indirect lightning strikes can induce high surge voltage through:

• Long DC cable runs
• Building grounding systems
• Nearby lightning activity

Recommended Protection

Install DC Surge Protection Devices (SPD):

• Type 2 SPD for most rooftop systems
• Installed inside DC combiner box or inverter input
• Properly connected to grounding system

Correct grounding is critical for SPD effectiveness.

Step 4 – Proper Cable and Temperature Consideration

Rooftops can reach very high temperatures, especially in industrial buildings.

High temperature affects:

• Cable ampacity
• Fuse performance
• Enclosure heat dissipation

Design Recommendations

• Apply temperature derating for current calculations
• Use UV-resistant, DC-rated cables
• Ensure enclosure ventilation or suitable IP-rated design

Ignoring rooftop temperature conditions can lead to long-term reliability issues.

Step 5 – DC Arc Risk Awareness

DC arcs are more dangerous than AC arcs because:

• DC current does not cross zero naturally
• Arcs can persist longer
• Fire risk is higher

Risk factors in rooftop systems:

• Loose MC4 connectors
• Damaged cables
• Improper crimping
• Aging insulation

Protection design should be combined with:

• Proper installation practices
• Periodic inspection
• High-quality DC connectors

Step 6 – Coordination with Inverter Design

Modern inverters may include:

• Internal DC isolation
• String monitoring
• Reverse polarity protection

However, relying only on inverter protection is not recommended for larger rooftop systems.

External DC protection ensures:

• Better fault isolation
• Reduced stress on inverter
• Improved overall system safety

Typical DC Protection Layout for Rooftop PV

For a medium-sized rooftop commercial system:

• String-level DC fuses
• DC combiner box
• DC Type 2 SPD
• DC isolator switch
• Proper grounding

For very small residential systems with few strings:

• Direct string-to-inverter connection
• Inverter-integrated isolator
• DC SPD depending on local standards

Protection design must always match system size and risk profile.

Common Mistakes in Rooftop DC Protection Design

• Using AC-rated switches on DC circuits
• Ignoring reverse current risk
• Omitting SPD in lightning-prone areas
• Undersizing fuses
• Poor grounding design

These mistakes can significantly increase long-term system risk.
