Solar power generation systems are extremely beneficial in residential, commercial, and industrial sectors, and the trend towards safe, orderly, and reliable DC power management is becoming increasingly important. The DC distribution box (also often referred to as a solar DC distribution box or photovoltaic DC distribution box) is one of the key components that plays this crucial role.
In this article, we’ll explain what a DC distribution box is, how it works, its core functions, typical applications, and how it differs from related components such as PV combiner boxes.
Contents
hide
Understanding the DC Distribution Box

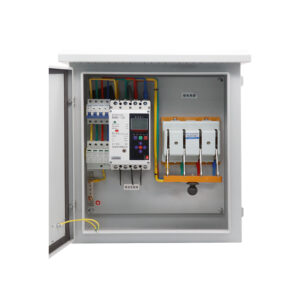

A DC distribution box is an electrical enclosure designed to receive direct current (DC) power from one or multiple sources and distribute it safely to downstream DC loads or equipment.
In solar energy systems, it is typically used between the PV array, energy storage system, and DC loads, providing structured power distribution and essential electrical protection.
Unlike AC distribution boards, DC distribution boxes are engineered to handle higher arc risks, unidirectional current flow, and wider voltage ranges, which are common in photovoltaic and battery-based systems.
Core Functions of a Solar DC Distribution Box
A solar DC distribution box is not just a wiring container. It integrates several critical functions:
DC Power Distribution
The primary role is to split and route DC power from a single input or multiple inputs to various output circuits, such as:
- Inverters
- DC loads
- Energy storage systems
- EV charging or auxiliary DC equipment
This organized layout simplifies system design and future maintenance.
Circuit Protection
Most DC distribution boxes are equipped with:
These components protect the system from overcurrent, short circuits, and abnormal operating conditions, significantly reducing fire and equipment damage risks.
Safe Isolation and Maintenance
Integrated DC disconnect switches allow technicians to safely isolate parts of the system during maintenance, troubleshooting, or emergencies without shutting down the entire installation.
Surge and Overvoltage Protection (Optional)
For outdoor or lightning-prone installations, DC distribution boxes may include DC surge protection devices (SPDs) to guard against transient overvoltage caused by lightning or grid disturbances.
Typical Applications of DC Distribution Boxes
DC distribution boxes are widely used across different solar and DC-based power systems:
Residential Solar Power Systems
In home PV systems, DC distribution boxes help manage:
- Power flow between PV panels and inverters
- Battery connections in hybrid or off-grid setups
- Compact, wall-mounted DC load distribution
Commercial and Industrial Solar Installations
Larger systems benefit from DC distribution boxes by:
Centralizing DC circuit protection
Improving system scalability
Reducing wiring complexity in control rooms or electrical cabinets
Energy Storage and Battery Systems
In battery energy storage systems (BESS), DC distribution boxes are used to:
Distribute DC power between battery modules
Protect battery strings
Manage high-voltage DC safely and efficiently
Off-Grid and Hybrid Systems
For off-grid solar, telecom sites, or remote power stations, DC distribution boxes provide stable, protected DC power routing to critical loads.
DC Distribution Box vs. PV Combiner Box: What’s the Difference?
Although often confused, these two components serve different purposes:
| Item | DC Distribution Box | PV Combiner Box |
|---|---|---|
| Main Function | Distributes DC power to multiple loads | Combines multiple PV strings into one output |
| Typical Position | Downstream of PV array or battery | Between PV strings and inverter |
| Outputs | Multiple DC circuits | Single or limited DC outputs |
| Protection | MCBs, fuses, isolators, SPDs | String fuses, isolator, SPD |
In many systems, both devices are used together—the combiner box aggregates PV input, while the DC distribution box manages and protects power distribution.
Key Components Inside a DC Distribution Box
A typical solar DC distribution enclosure may include:
DC circuit breakers (rated for 250V–1500V DC)
DC fuses and fuse holders
DC isolator switches
Surge protection devices (Type 2 or Type 1+2)
Copper busbars
Flame-retardant or metal enclosures with IP-rated protection
The exact configuration depends on system voltage, current, and application requirements.
Enclosure and Safety Design
Modern DC distribution boxes are designed with:
IP54 / IP65 protection for dust and water resistance
UV-resistant enclosures for outdoor use
Clear labeling for easy circuit identification
DIN-rail mounting for standardized installation
These features ensure long-term reliability even in harsh solar environments.
Why DC Distribution Boxes Are Essential in Solar Systems
Using a dedicated DC distribution box offers several advantages:
Improved electrical safety
Cleaner and more professional system layout
Easier troubleshooting and maintenance
Better compliance with international standards
Reduced risk of DC arc faults
For installers and system integrators, it also improves installation efficiency and system scalability.
Choosing the Right DC Distribution Box
When selecting a DC distribution box, consider:
System voltage and current ratings
Number of DC input and output circuits
Required protection components
Indoor or outdoor installation environment
Compliance with standards such as IEC, CE, or TUV
A well-matched DC distribution solution directly impacts the overall safety and performance of the solar power system.
Conclusion
A DC distribution box, also known as a solar or PV DC distribution box, is a vital component in modern photovoltaic and energy storage systems. It ensures safe, organized, and efficient DC power distribution, protects critical equipment, and supports long-term system reliability.
Whether used in residential solar setups, commercial PV projects, or battery energy storage systems, DC distribution boxes play an essential role in building a stable and compliant solar infrastructure.
