Solar PV Combiner Box: All You Need to Know

When it comes to solar installations, there’s a lot going on behind the scenes. Sure, you see the panels gleaming in the sun, generating clean energy, but have you ever wondered how it all comes together? That’s where the Solar PV combiner box steps in. It’s a key component in a solar system, playing a crucial role in making sure everything runs smoothly. But what exactly is it, and why is it so important?

In this article, we’ll explore everything you need to know about PV combiner boxes. Whether you’re planning a commercial solar installation or just curious about the inner workings of solar power, this guide will break it all down for you.

What is a Solar PV Combiner Box?

Let’s start with the basics. A Solar PV combiner box is a piece of equipment used in solar power installations to combine the output from multiple solar panel strings into one single conductor. Think of it as the intersection point where all the electricity from different solar panels meets before it continues on its journey to the inverter, which converts that power into usable electricity.

Now, why does this matter? In larger solar projects, you’ll have several “strings” (groups of solar panels) working together. Without a PV combiner box, the wiring would be a chaotic mess, and system efficiency would suffer. The combiner box helps consolidate the wiring, making the installation neater, more efficient, and safer.

Why You Need a Solar PV Combiner Box

You might be wondering: Do I really need a combiner box? The answer depends on the size and scope of your project. For small residential systems with only a few solar panels, a combiner box might not be necessary. But for larger projects—think commercial or utility-scale installations—it’s an essential component.

Here’s why:

• Wiring Simplification: Without a combiner box, you’d need individual wires running from each string of panels to the inverter. That means more labor, more material, and more room for things to go wrong. A combiner box neatly organizes everything, reducing the number of cables and making the system easier to manage.
• Enhanced Protection: The box isn’t just for organizing cables. It also houses overcurrent protection devices like fuses or circuit breakers, which are crucial for preventing electrical overloads that could damage the system or cause dangerous conditions.
• Cost Efficiency: By reducing the amount of wiring and simplifying the setup, a PV combiner box can help you save on installation costs. Less wiring means less labor and fewer materials, which ultimately reduces the total project cost.
• Maintenance and Safety: In the event of an issue, such as a fault in one of the strings, the combiner box helps isolate the problem, making it easier to locate and fix without shutting down the entire system.

In short, if you’re dealing with more than a few solar panels, a PV combiner box is a must-have. It not only streamlines the wiring but also enhances safety, making your solar system more reliable and efficient.

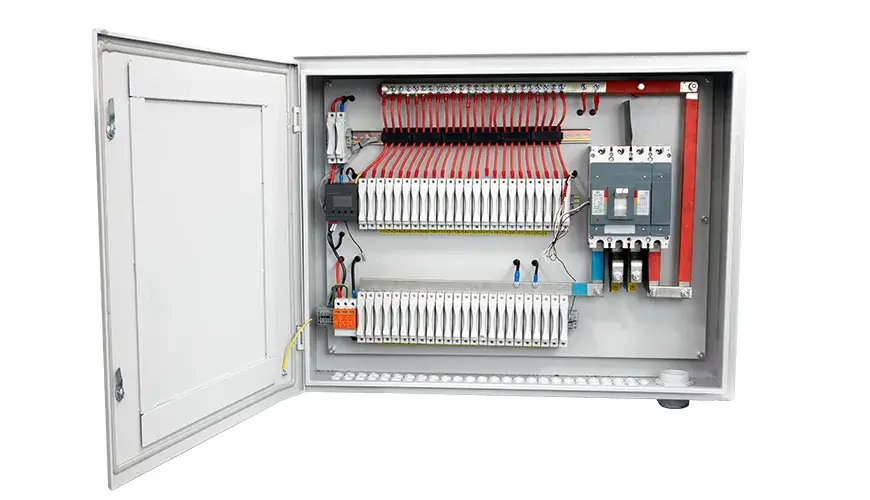

Key Components Inside a Solar PV Combiner Box

So, what’s actually inside a PV combiner box? Let’s break it down.

1. DC Molded Case Circuit Breakers (MCCB): These are heavy-duty breakers designed to handle higher currents in solar power systems. They protect the system from overcurrent, which could otherwise damage the equipment.
2. PV String Fuses: These fuses act as a safeguard by stopping reverse currents. Reverse currents happen when there’s a malfunction, and they can severely damage your system. String fuses stop that from happening.

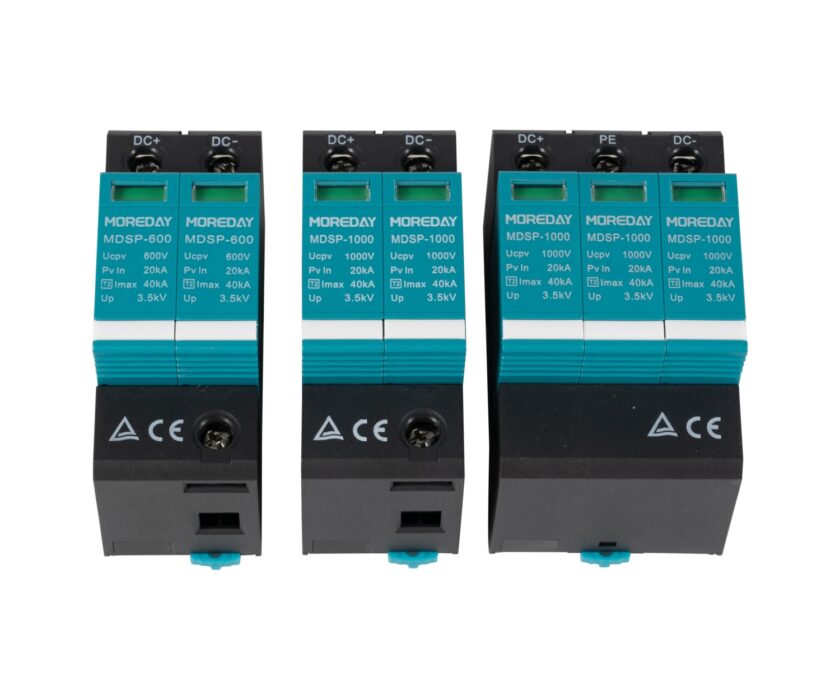

3. DC Surge Protection Devices (SPD): Solar installations are vulnerable to surges, especially from lightning strikes or power spikes. Surge protection devices divert excess voltage away from the sensitive components, keeping them safe.
4. DC Disconnect Switch: If you need to work on your system or if there’s an issue, the disconnect switch allows you to safely cut off power without affecting the rest of the system.
5. Busbar & Terminal Strip: These components help consolidate the wiring. The busbar combines the incoming wires from different strings, while the terminal strip is a simpler version, often used for ground connections.
6. Enclosure: The physical box that houses all these components. It’s typically weatherproof, designed to withstand harsh conditions like rain, dust, and extreme temperatures. Look for an enclosure with an IP65 rating, meaning it’s both dust-tight and water-resistant.

These components work together to keep your solar system running smoothly, safely, and efficiently. Without them, your system would be vulnerable to overloads, surges, and other issues that could lead to costly repairs.

Choosing the Right Solar PV Combiner Box for Your Project

Not all combiner boxes are created equal. When selecting a Solar PV combiner box, you need to consider a few key factors to make sure it’s the right fit for your system.

1. Number of Input Channels: This refers to how many solar panel strings the box can handle. For example, if your project involves six strings of panels, you’ll need a combiner box with at least six input channels. Make sure you choose one that matches your project’s scale.
2. Voltage Rating: Different solar installations have different voltage requirements. Make sure the combiner box you choose can handle the voltage of your system. Most commercial projects require boxes with a higher voltage rating than residential setups.
3. Overcurrent Protection: This is essential for protecting your system from electrical overloads. Ensure the box has fuses or circuit breakers rated for the size and power of your system. You want a box that can absorb voltage spikes without frying your equipment.
4. Environmental Considerations: If your installation is in a harsh environment—think hot, humid, or dusty conditions—you’ll want a combiner box with a high enclosure rating. Look for a box with a durable, weatherproof enclosure that can keep moisture, dust, and other contaminants out.

Innovations and Trends in PV Combiner Boxes

As solar technology evolves, so do PV combiner boxes. Recent advancements have made them even more efficient, safer, and easier to install. Here are some of the latest trends to keep an eye on:

• Arc-Fault Protection & Rapid Shutdown: Due to changes in the National Electrical Code (NEC), more and more combiner boxes now include arc-fault protection and rapid shutdown features. These help prevent dangerous electrical arcs and allow for quick system shutdown in the event of an emergency.
• Pre-Installed Whips: Some combiner boxes now come with pre-installed “whips” – wires with solar connectors already attached. This simplifies installation and reduces the risk of errors. It’s as simple as plugging in a toaster.

These innovations make PV combiner boxes safer and more efficient, reducing both installation time and costs.

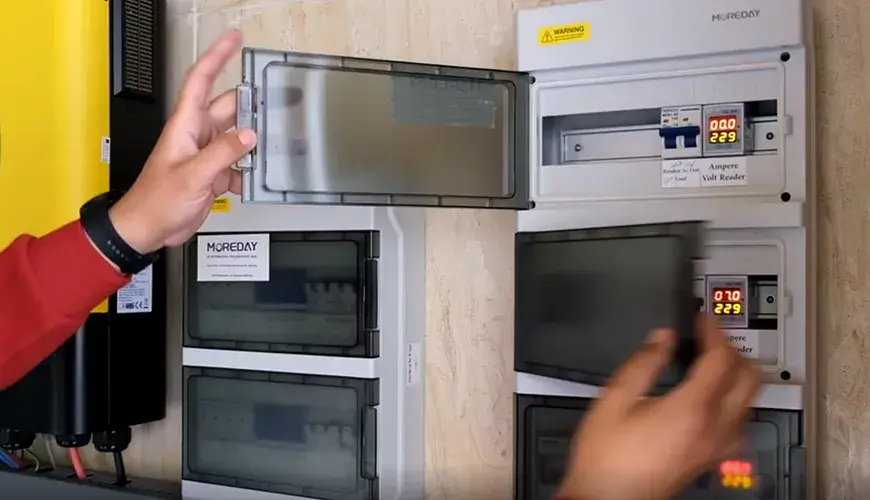

Installation Tips for Solar PV Combiner Boxes

Installing a PV combiner box isn’t rocket science, but there are a few best practices to ensure it’s done right.

1. Location, Location, Location: Where you install the combiner box matters. It should be close to the solar panels to minimize wiring, but also in a shaded spot to prevent overheating. Many experts recommend placing the box in a north-facing location to protect it from direct sunlight.
2. Accessibility: Make sure the combiner box is easy to access for future maintenance. You don’t want it buried behind other equipment or in a hard-to-reach spot.
3. Weatherproofing: Even though most combiner boxes are designed to withstand the elements, it doesn’t hurt to add extra protection. Consider installing it under an awning or some other form of cover to further shield it from rain, snow, and intense sunlight.

Maintenance and Longevity

One of the great things about a Solar PV combiner box is that it requires very little maintenance. However, a little attention goes a long way in keeping it functioning smoothly for years to come.

• Regular Inspections: Even though these boxes are built to last, it’s a good idea to check them periodically. Look for any signs of wear and tear, such as loose connections or moisture inside the box.
• Cleaning: Dust and dirt can accumulate over time, especially in dry environments. Giving the box a quick clean every year or so can help prevent long-term damage.
• Component Replacement: While the box itself is built to last the lifetime of the solar installation, some components, like fuses or circuit breakers, might need replacing over time. Keep an eye out for any warning signs, such as flickering lights or tripped breakers.

Conclusion

A Solar PV combiner box is a critical component of any solar power system, especially in larger installations. It simplifies the wiring, protects the system from electrical surges, and makes maintenance easier. Choosing the right combiner box for your project ensures long-term efficiency and safety.

As a professional manufacturer of Solar PV combiner boxes, MOREDAY offers high-quality solutions designed to meet the specific needs of your solar installation. Whether you’re working on a residential project or a large commercial setup, we’ve got you covered.

Related reading: What is Solar Rapid Shutdown?

FAQs

1. Do I need a Solar PV combiner box for my small solar project?
   If your system has fewer than three strings, you might not need one. However, for larger setups, a PV combiner box is essential to organize wiring and provide protection.
2. Can I install a PV combiner box myself?
   While it’s possible, we recommend hiring a professional to ensure it’s installed correctly and safely.
3. How often should I check my PV combiner box?
   Periodic checks every year or two should be sufficient unless you notice performance issues with your solar system.
4. What’s the lifespan of a combiner box?
   With proper maintenance, a PV combiner box should last the lifetime of your solar installation—typically 20-25 years.
5. Can a Solar PV combiner box handle extreme weather conditions?
   Yes, most boxes are designed to be weatherproof, but it’s still important to choose one with an appropriate enclosure rating for your environment.
