EV Charging
I

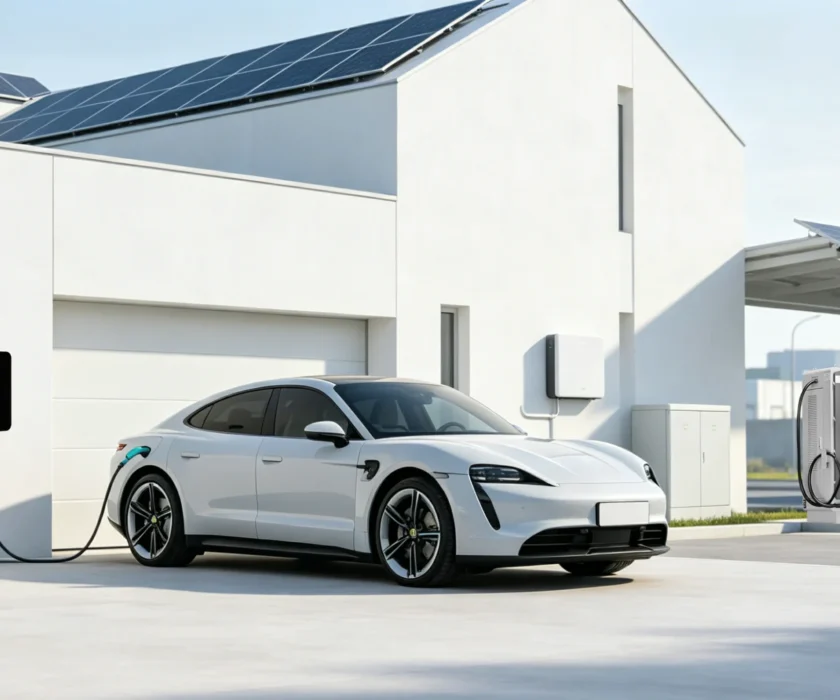

n the quest for sustainable transportation, electric vehicle (EV) solar charging stations are emerging as a game-changer. Imagine being able to power your electric car with the energy of the sun, reducing your carbon footprint and saving on energy costs. Sounds futuristic, right? Well, it’s here now, and it’s transforming the way we think about EV charging. Let’s dive into what these solar charging stations are all about, how they work, and why they might just be the perfect fit for your green lifestyle.
Classification of Solar Charging Stations for EV
Electric vehicle photovoltaic charging stations can be divided into two categories, namely off-grid electric vehicle photovoltaic charging stations and grid-connected electric vehicle photovoltaic charging stations. Currently, grid-connected electric vehicle photovoltaic charging stations are more widely used. Grid-connected electric vehicle photovoltaic charging stations are mainly composed of photovoltaic battery arrays, energy storage battery packs, multiple DC/DC converters, AC power supplies, central controllers and other units.
Principle of Solar Charging Station for Electric Vehicles
High-energy storage batteries are used to store solar energy and provide it to electric vehicles for charging or to supply power to other systems in a timely manner. When the solar energy is not enough to meet the needs of the charging station, the energy can be transmitted from the power grid to the charging station for storage, so as to provide power to the electric vehicle in a timely manner.
Photovoltaic cell array: It is composed of solar panels connected in series and parallel. It absorbs solar energy and emits direct current, which is connected to the charging system through a DC/DC converter. It is the main power source for charging electric vehicles in the station.
Multiple groups of DC/DC converters: as the conversion units of photovoltaic cell arrays, energy storage battery packs and electric vehicle charging systems. Among them, the photovoltaic power generation system and the electric vehicle charging system use DC/DC converters with unidirectional energy flow, and the energy storage battery pack uses DC/DC converters with bidirectional energy flow.
Energy storage battery pack: Starts energy storage and regulation in the system. When photovoltaic power generation is in excess, it stores excess electricity. When photovoltaic power generation is insufficient, the electric vehicle is charged by energy storage or together with the AC distribution network.
Central controller: coordinates the normal operation of each component unit in the system to realize energy monitoring and control.
DC/AC converter: As the connection unit between the AC distribution network and the photovoltaic charging system, it converts the AC power input from the distribution network into DC power for connection to the charging system according to the charging needs within the station.
Features of Photovoltaic Charging Stations for Electric Vehicles
Advantage 1: Energy storage photovoltaic charging stations are composed of multiple energy storage batteries, so even if there is a shortage of supply, there is no need to rebuild a larger charging station. The method of expanding energy is very simple, just increase the number of battery packs according to demand. This saves the construction cost of the charging station to a great extent and provides more possibilities for the long-term development of the charging station.
Advantage 2: No need to build a special power station or power grid, nor to increase the power capacity of the power grid
The photovoltaic charging station system will choose to purchase electricity from the national grid during the off-peak period of the power grid and store it in the energy storage system. This not only helps the charging station to meet the needs of quickly charging electric vehicles without affecting the use of the power grid, but also effectively utilizes the power of the national grid during the off-peak period. On the contrary, when the national grid is under greater pressure during peak hours, the charging station can also use the power storage advantage to supply power to the grid.
Conclusion
Electric vehicle solar charging stations are at the forefront of sustainable transportation. They offer a clean, efficient way to power your EV while contributing to a greener planet. Despite some challenges, the benefits—ranging from environmental impact to long-term cost savings—make them a compelling choice for the eco-conscious driver. As technology advances and costs decrease, solar charging stations will likely become a staple in both residential and commercial settings, paving the way for a more sustainable future.
