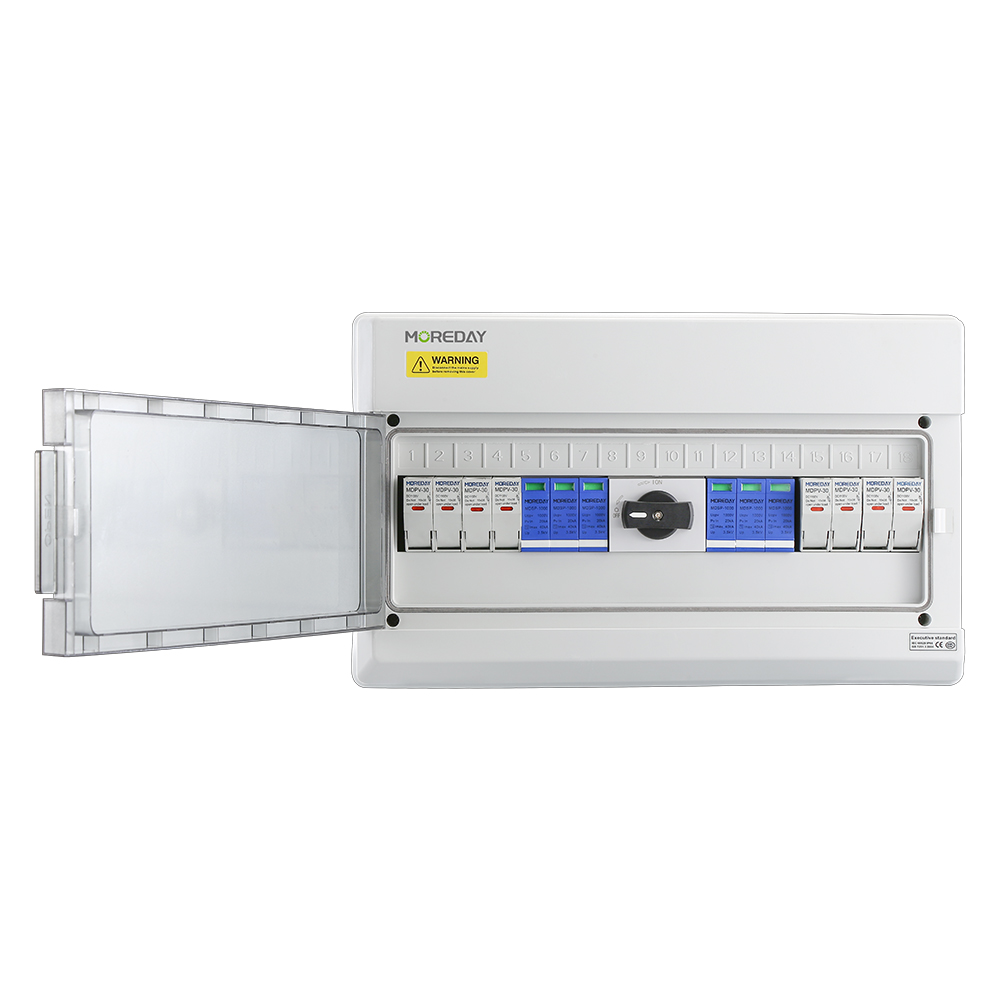

PV DC COMBINER BOX MDJB-A / MDJB-B
IP65 DC string box is designed for 1 to 16 strings solar PV system, CE CB TUV certificated.
- 600V / 1000V for solar PV application
- 1 to 16 strings input
- 1 to 3 strings output
- Housing: Pluggable design
- Wall mount
- RoHS material
Stable Deliivery Time
Technical Support
2 Years
PV DC Combiner Box MDJB-A / MDJB-B
Our MDJB PV DC Combiner Box stands out with its robust features designed to ensure the efficiency and reliability of your solar power systems. Engineered to accommodate multiple string configurations, these combiner boxes can handle up to 1000V of maximum working voltage and offer discharge currents up to 40 kA, ensuring your system’s safety against electrical surges. The inclusion of DC surge protectors, isolator fuses, and DC MCBs (Miniature Circuit Breakers) guarantees optimal protection and operational reliability.
Applicable Scenarios
Designed for both small-scale residential setups and large-scale commercial solar installations, the MDJB PV DC Combiner Box is an essential component in photovoltaic systems. It excels in various environments, ranging from harsh, remote areas with extreme temperatures to urban settings requiring sophisticated energy solutions.
Why Choose Moreday?
Selecting Moreday means partnering with a leader in solar technology that is deeply committed to innovation and sustainability. With over a decade of specialization in photovoltaic products and a global footprint in over 100 countries, we ensure:
Tailor-made Solutions: Customized services to meet specific project requirements.
Comprehensive Support: A global service network providing ongoing assistance and maintenance.
Sustainable Practices: A corporate philosophy centered around reducing the carbon footprint and enhancing green energy usage worldwide.
SPECIFICATION
Specification | Parameter |
Input | 1-6 Strings |
Output | 1/2 strings |
Max Voltage | 600V/1000V |
Max Current Input (Eachstring) | 30A/63A |
Enclosure | |
Materia | PC/ABS |
Degree of Protection | IP65/IP66 |
Impacts | Ik10 |
Input Cable Glands | PG09, 2.5-16 |
Output Cable Gland | PG21, 2.5-16 |
Operating temperature | -25℃~+60℃ |
DC surge protection | |
Maximum working voltage | 1000 V |
Maximum discharge current | 40 kA |
Executive Standard | EN 50539-11 Type 2 |
Certification | CE,CB,TUV |
DC isolated switch/DC MCB | |
Rated insulation pad | 1000V |
Rated current | 32A/63A/80A |
Classification | DC-PV1/DC-PV2 |
Executive Standard | IEC/EN 60947-3, UL508I |
Certification | CE, TUV, CB，TUV Australia Approval |
DC fuse | |
Rated working voltage | 1000V |
Rated current | 15~32A(Optional) |
Dimensions (W*H*D) | Φ10 * 38 mm |
Executive Standard | CE, TUV, CB |
Environmental parameters | |
Operating temperature | -20℃~+60℃ |
Humidity | 99% |
Altitude | 2000m(2000m Above derating) |
Installation method | Wall-mounted installation |
